STROBON 2-6S 3A Regulator and Synchronizer
The Strobon PWR 3A is a compact navigation light synchroniser with an integrated 3A uBEC power supply.
This small board converts 2–6S LiPo battery input (7.4–22.5V) to a stable 5V output, while also generating a PWM signal to power and synchronise navigation lights.
You can optionally control the lights remotely using the isolated RC-IN socket, allowing ON/OFF switching via an available RC receiver channel.

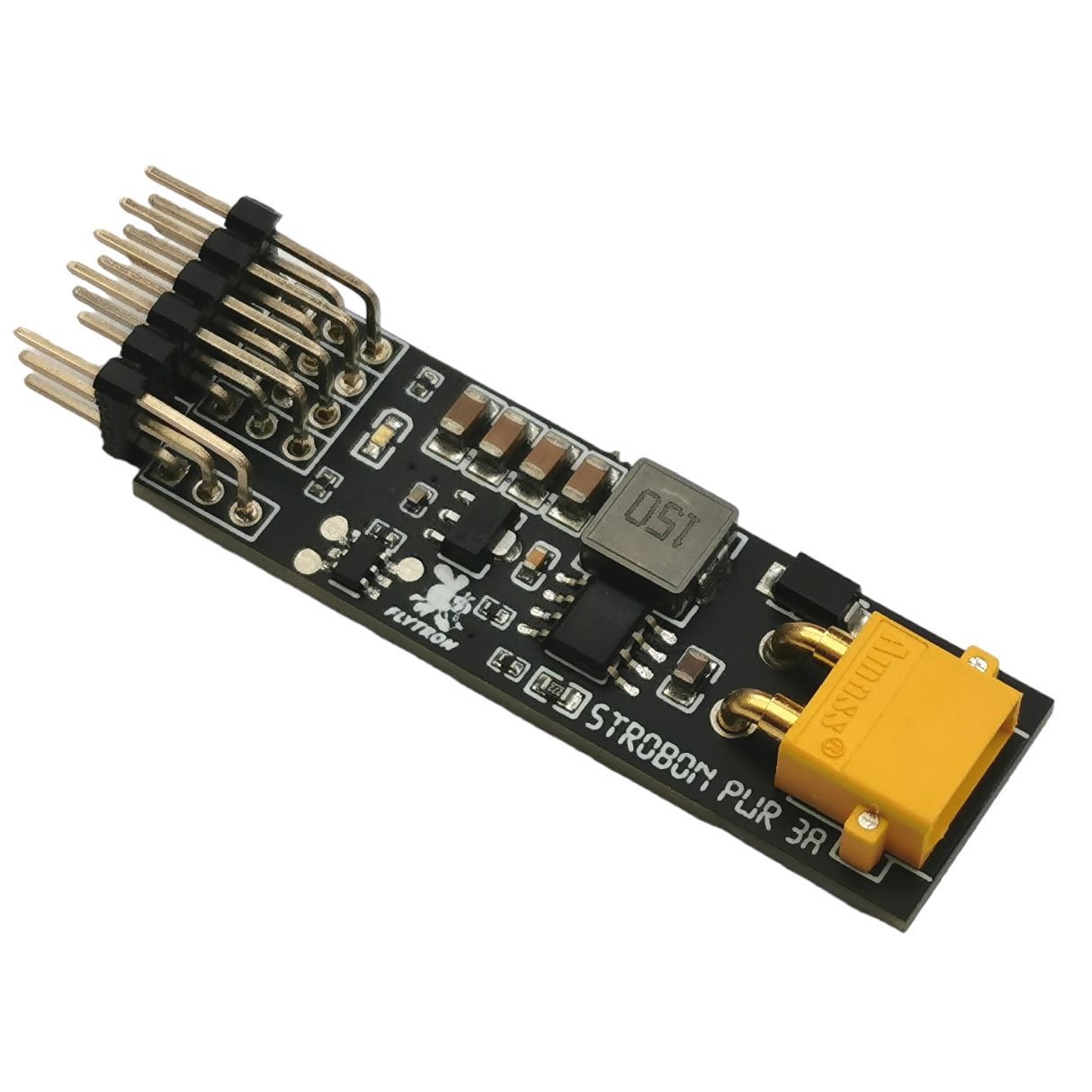

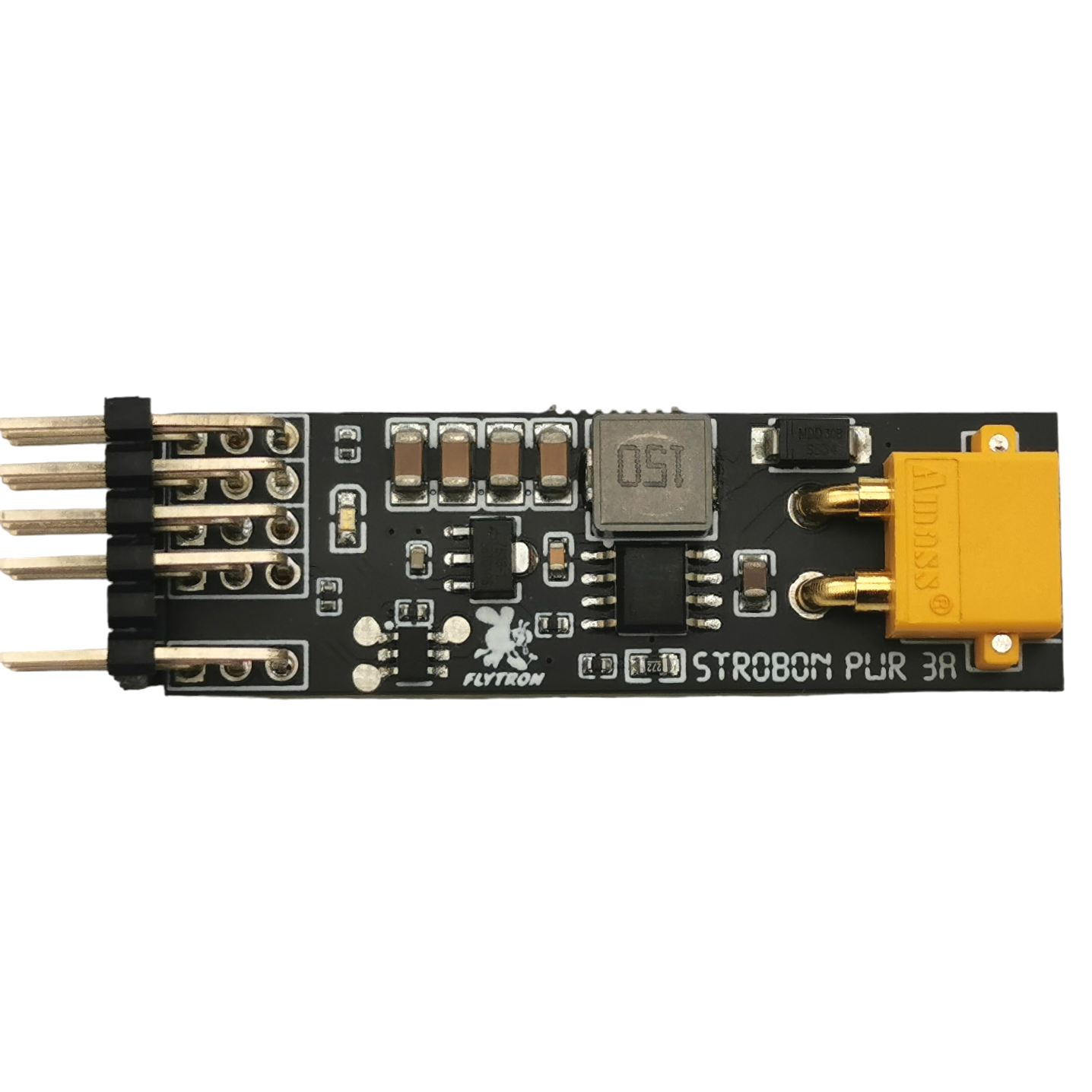

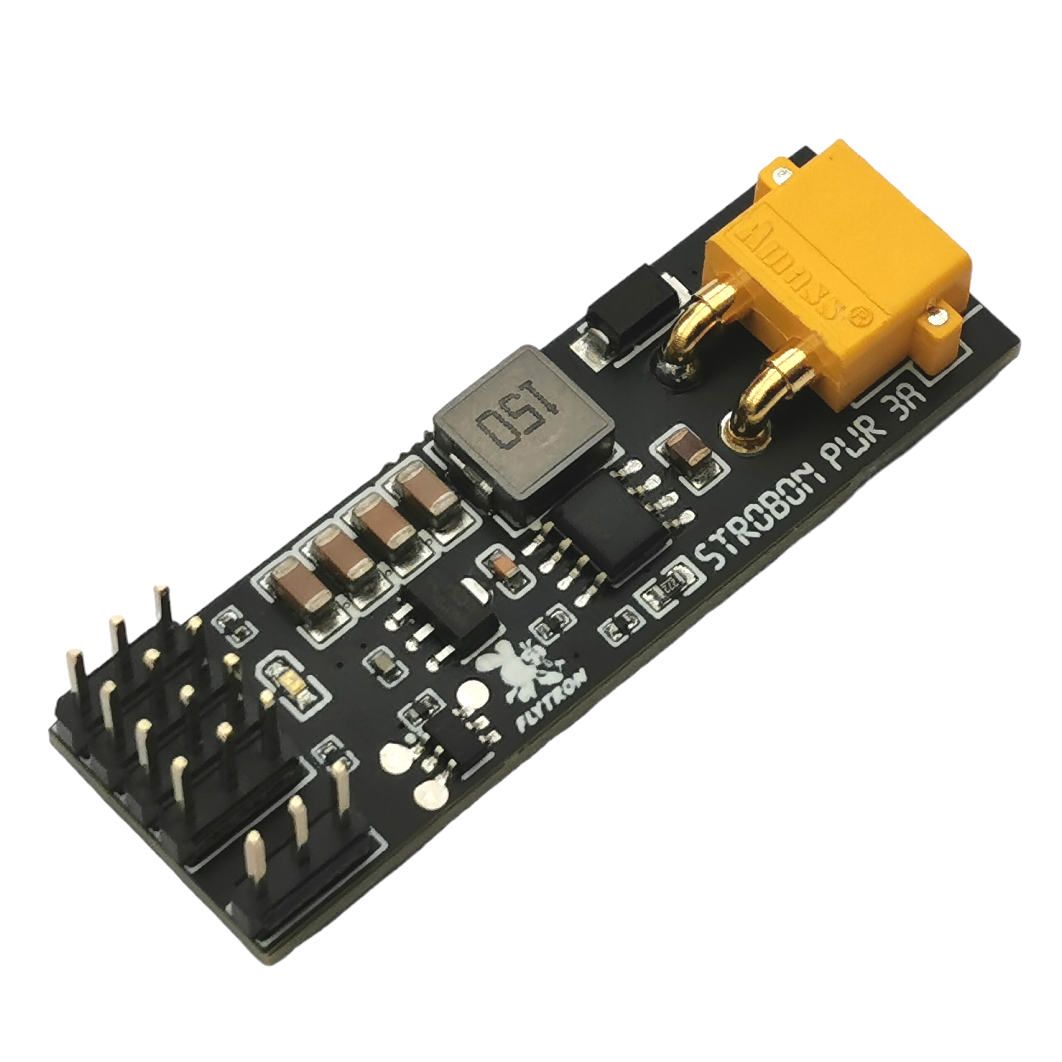

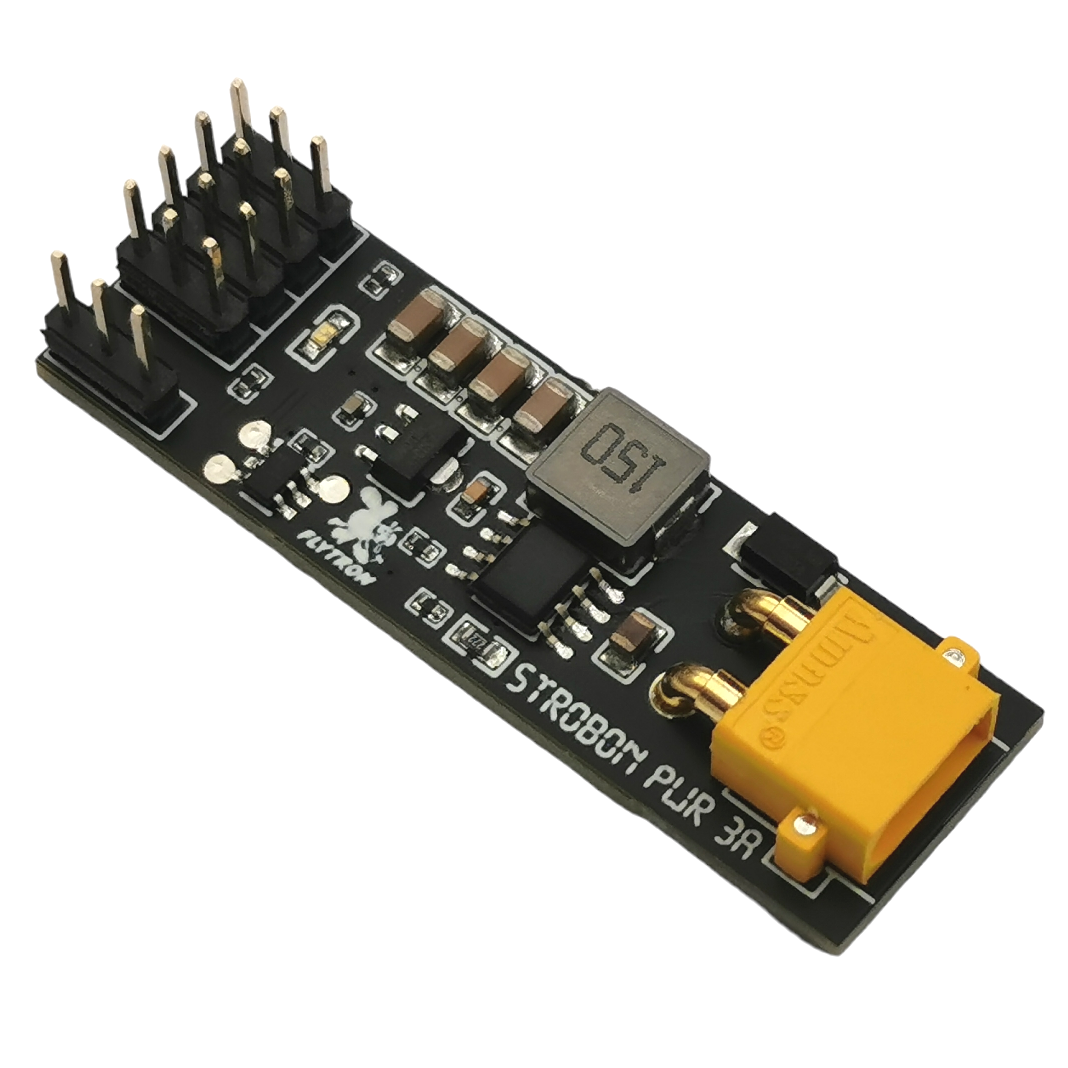

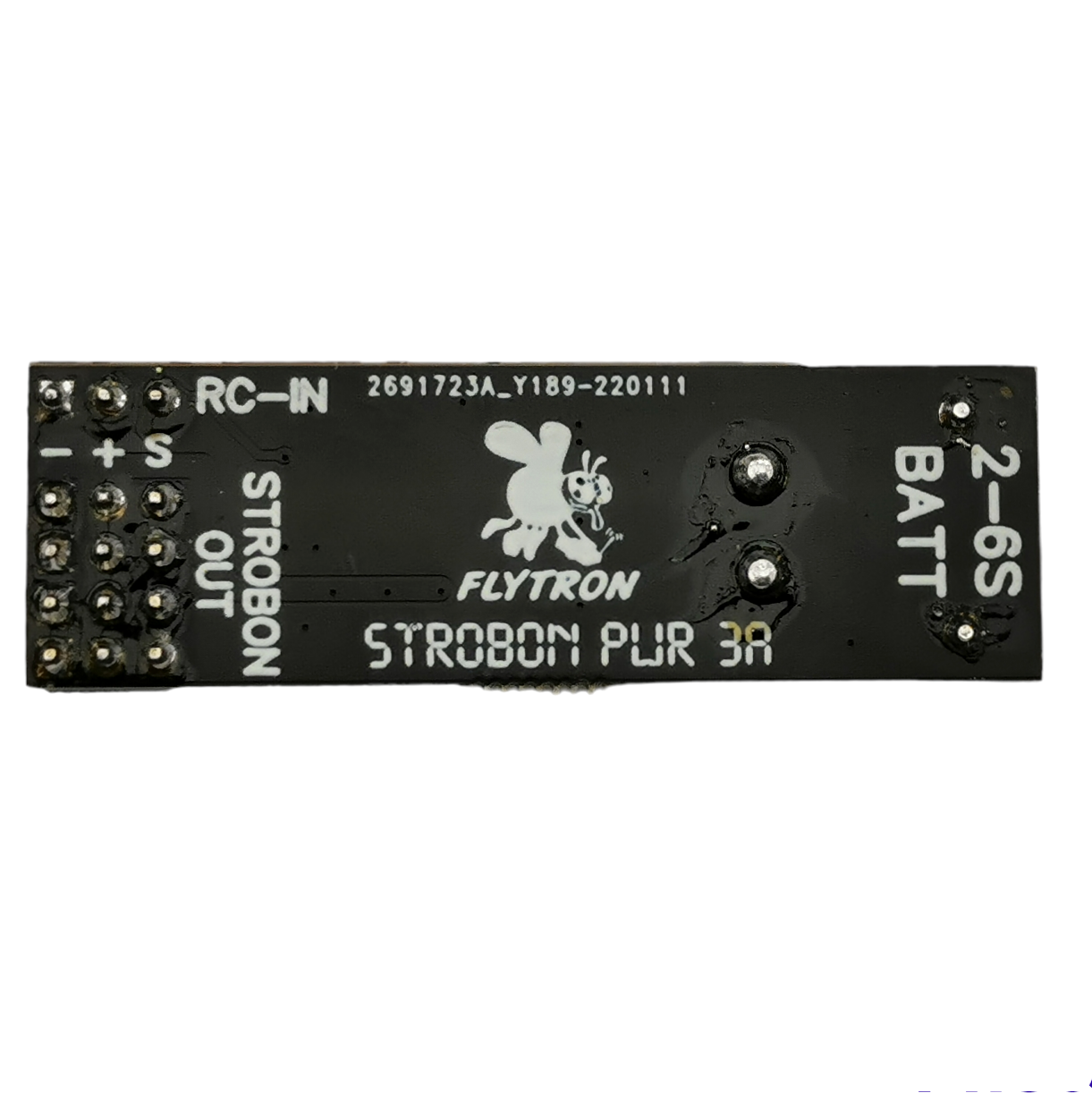

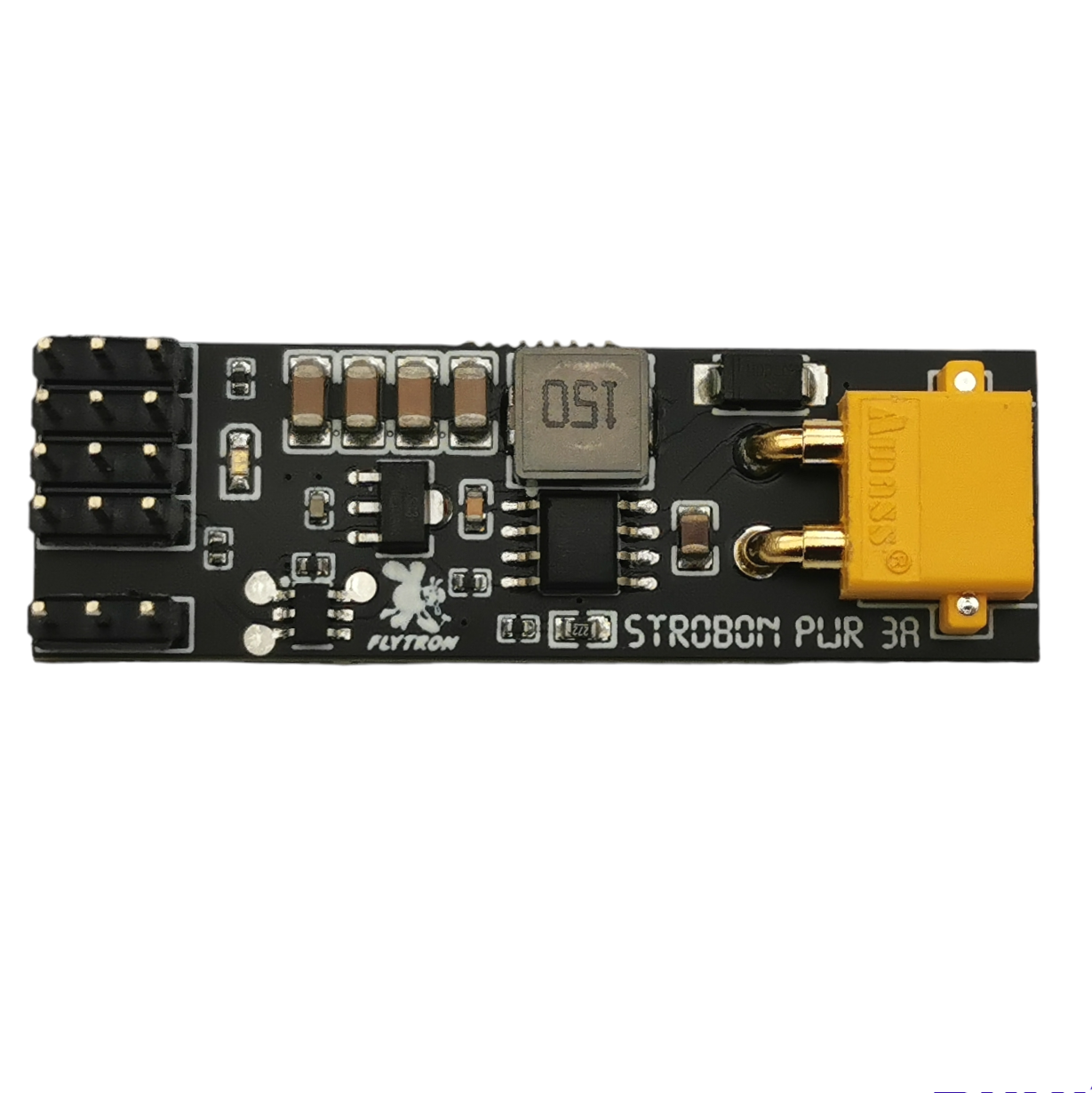

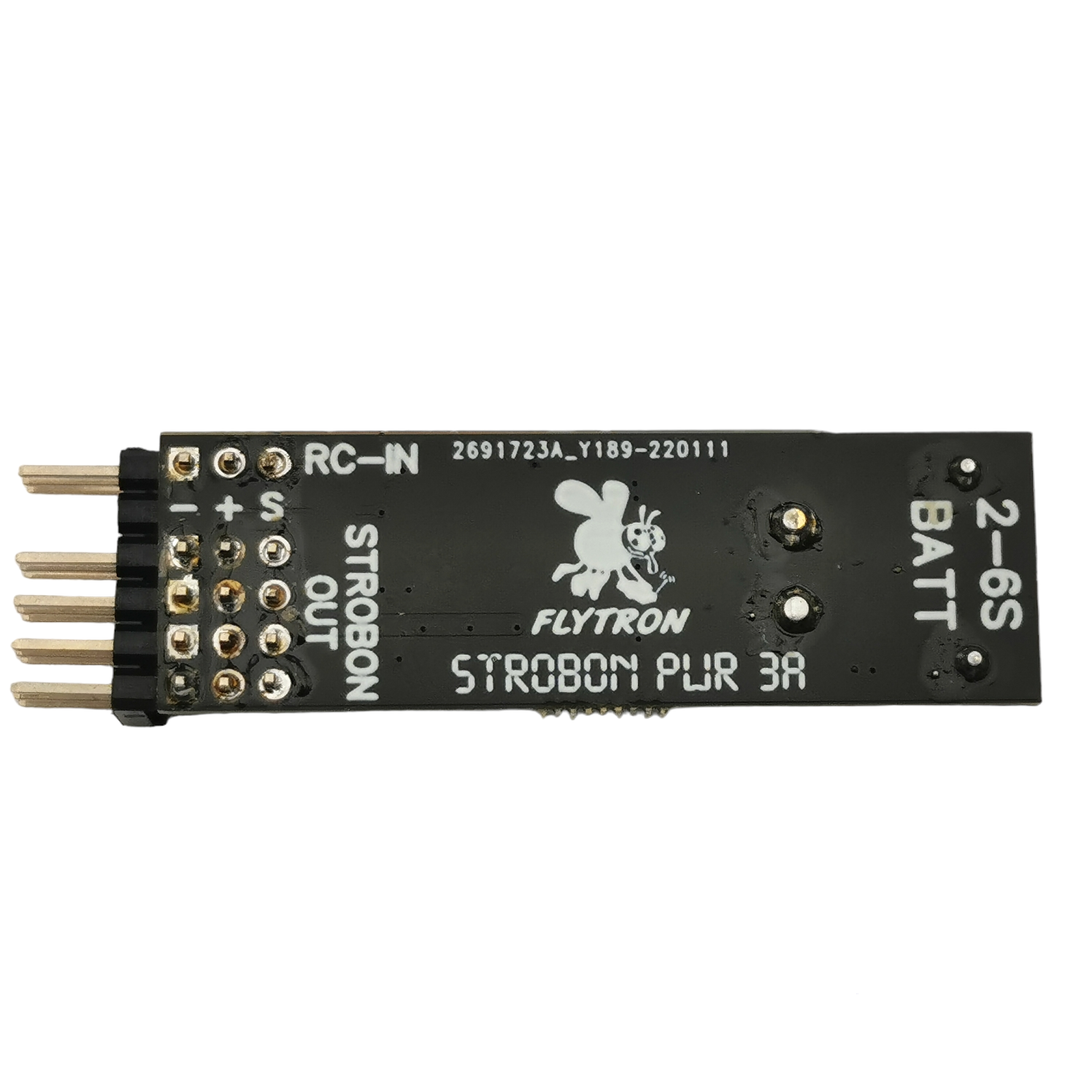

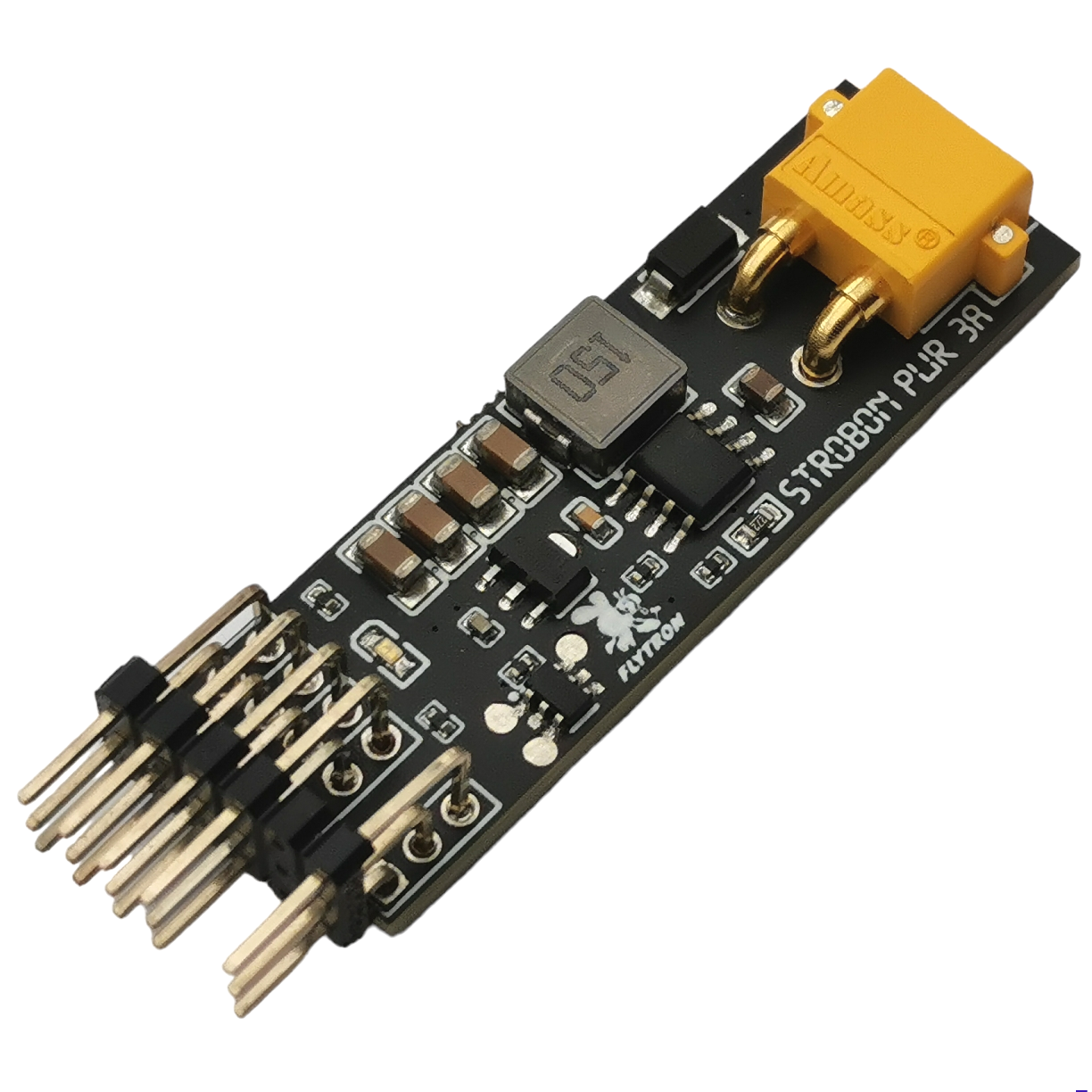

Strobon PWR 3A board with integrated power and sync signal output.
Key Features
- Dimensions: 50mm × 16mm × 10mm
- Weight: 7g
- Base Power Consumption: 5mA @ 2S input
- Integrated Step-Down Converter: 3A, up to 26V max input
- Optional RC Control Input: Standard 50Hz servo PWM signal
* Only Signal and Ground are connected; (+) pin is not active.
