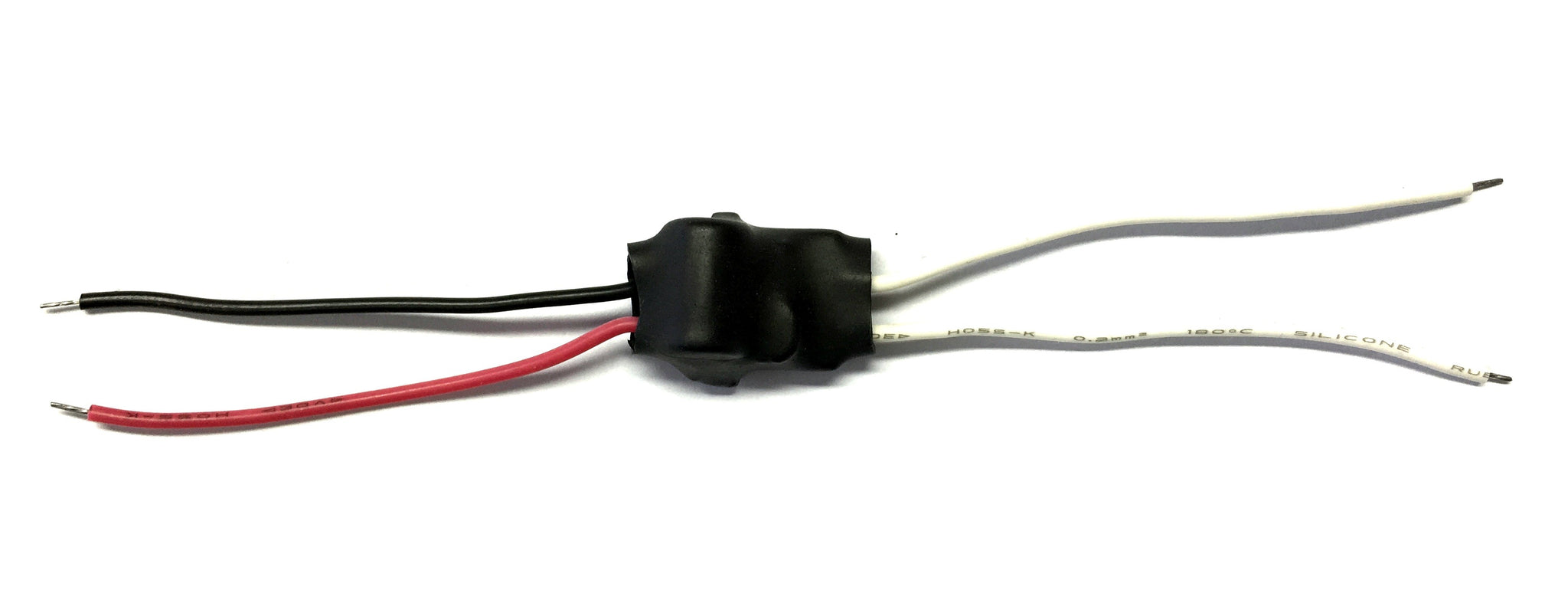

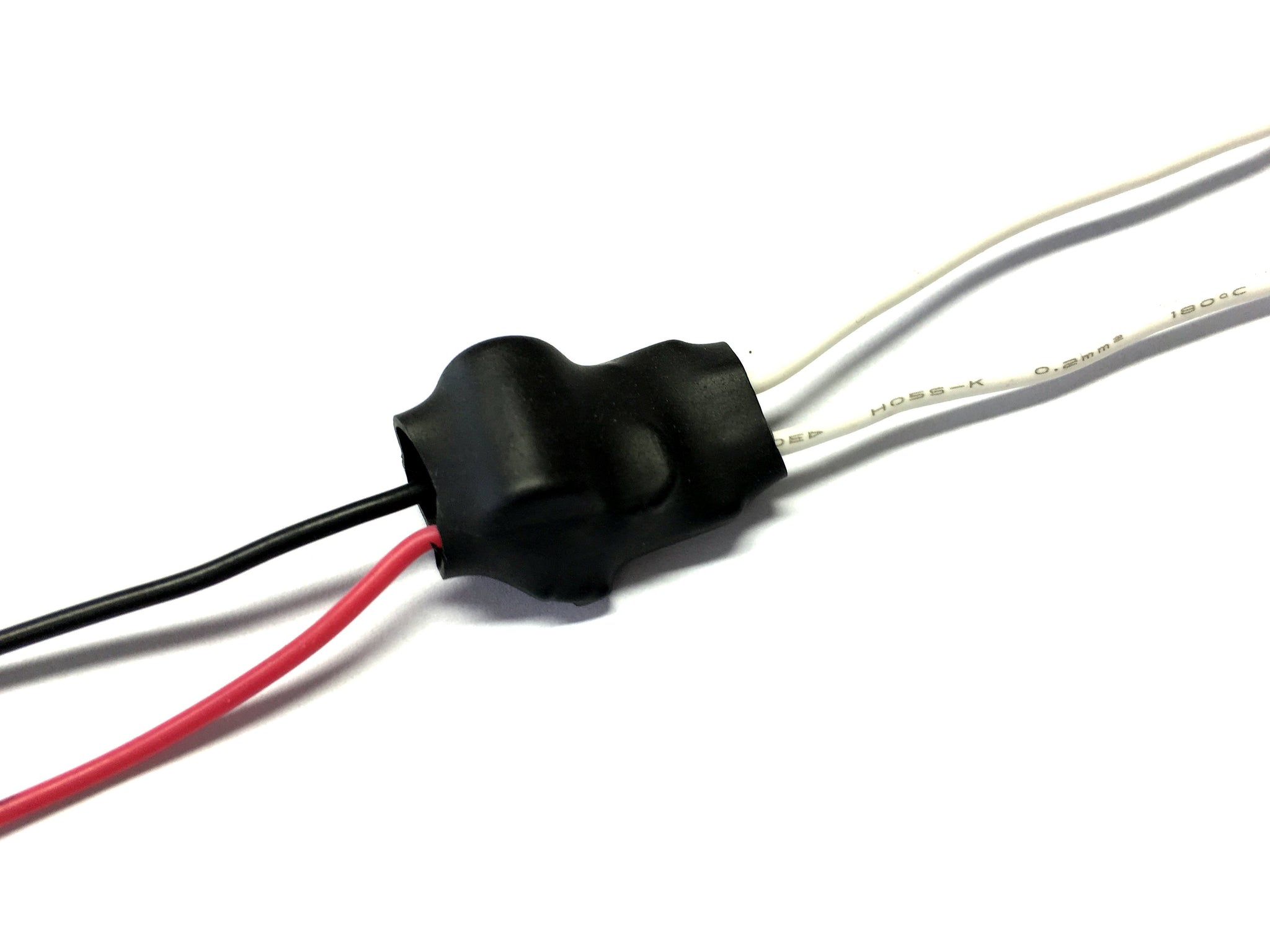

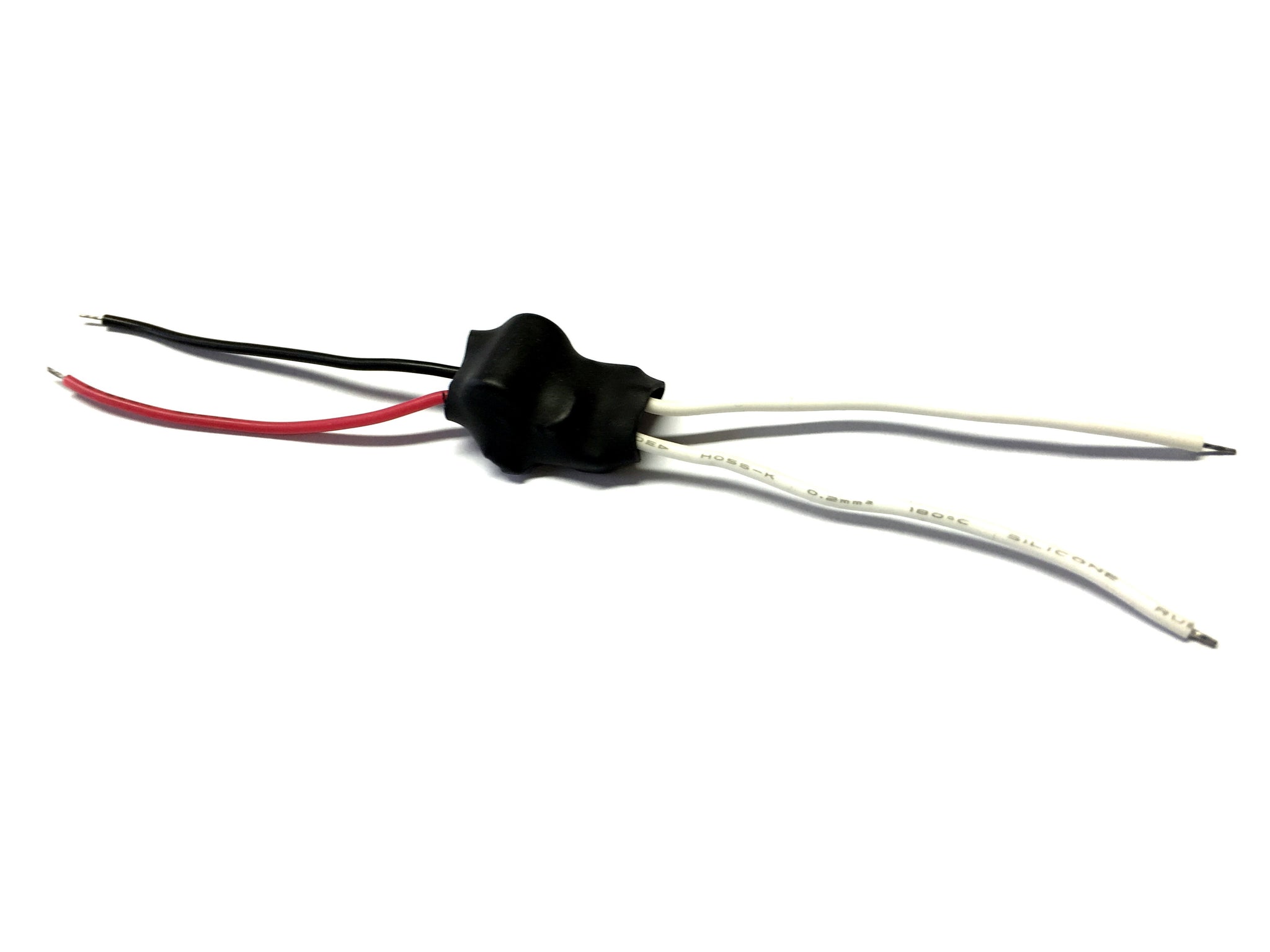

10W LED Driver (9-24V input)

This driver circuit is designed for our 10W LED Arrays or serial-connected 3 × 3W LEDs.

It features an onboard diode bridge for reverse polarity protection—so there's no need to worry about battery polarity. Simply connect your power source to the WHITE wires.

🔗 Compatible LED Arrays: View Here

🔌 Connection

The WHITE wire should be connected to the (+) leg of the LED.
The RED wire should be connected to the (–) leg of the LED.

⚙️ Features

• Input Voltage: DC 9–24V
• Output Voltage: DC 8–11V
• Stable Output Current: 900mA
• Reverse polarity protected inputs
