10Hz GPS module NEW v2

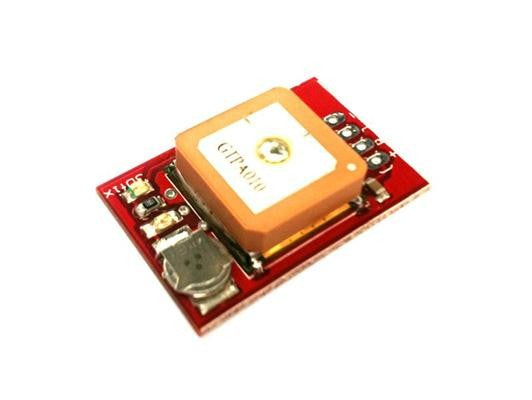

This is our new 10Hz GPS module that increased noise resistance and is powered with a Super Capacitor to back up for more than one week.
SimpleOSD GPS module is 66 channel -163dB high sensitive urban GPS device with a 10Hz refresh rate

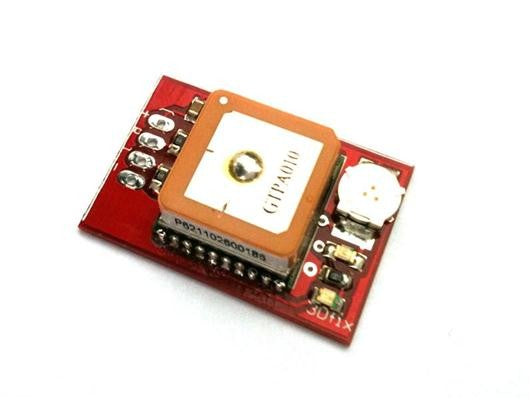

Backup system and 3D Fix status led onboard.
FGPMMOPA6B is the best civil GPS module in the world
This new B-type GPS module includes fine-tuned Patch antenna. It's working perfectly in urban conditions.
- MediaTek Single Chip
- Dimension:16mm x 16mm x 6mm
- Patch Antenna Size 15mm x 15mm x 4mm
- L1 Frequency, C/A code, 66 channels
- Embedded LNA and SAW filter
- With an Active patch antenna
- High Sensitivity Up to -163 dBm tracking, superior urban performances
- Position Accuracy < 3m CEP (50%) without SA (horizontal)
- Cold Start is Under 35 seconds (Typical)
- The warm Start is Under 34 seconds (Typical)
- Hot Start is Under 1 second (Typical)
- Low Power Consumption 48mA @ acquisition, 37mA @ tracking
- Low shut-down current consumption 15uA, typical
- DGPS(WAAS, EGNOS, MSAS) support (optional by firmware)
- Max. Update Rate: up to 10Hz
- UART Interface
- Support AGPS function ( Offline mode: EPO valid up to 14 days )S
- 1 week backup time with Super Capacitor
- 3.3 to 5.5v supply voltage (Default 5v, need a small hack for 3.3v usage)
These modules are including a BlueLED between supply and backup capacitor for voltage dropping. You have to replace the LED with a diode for 3.3v usage. If you want to use the modules on your own 3.3v project;
- Replace the Blue LED with 1N4148 or similar silicon diode.
- Or contact us for 3.3v version, we can replace it for you.
If you want to buy only FGPMMOPA6B module, visit our Sensors page.
